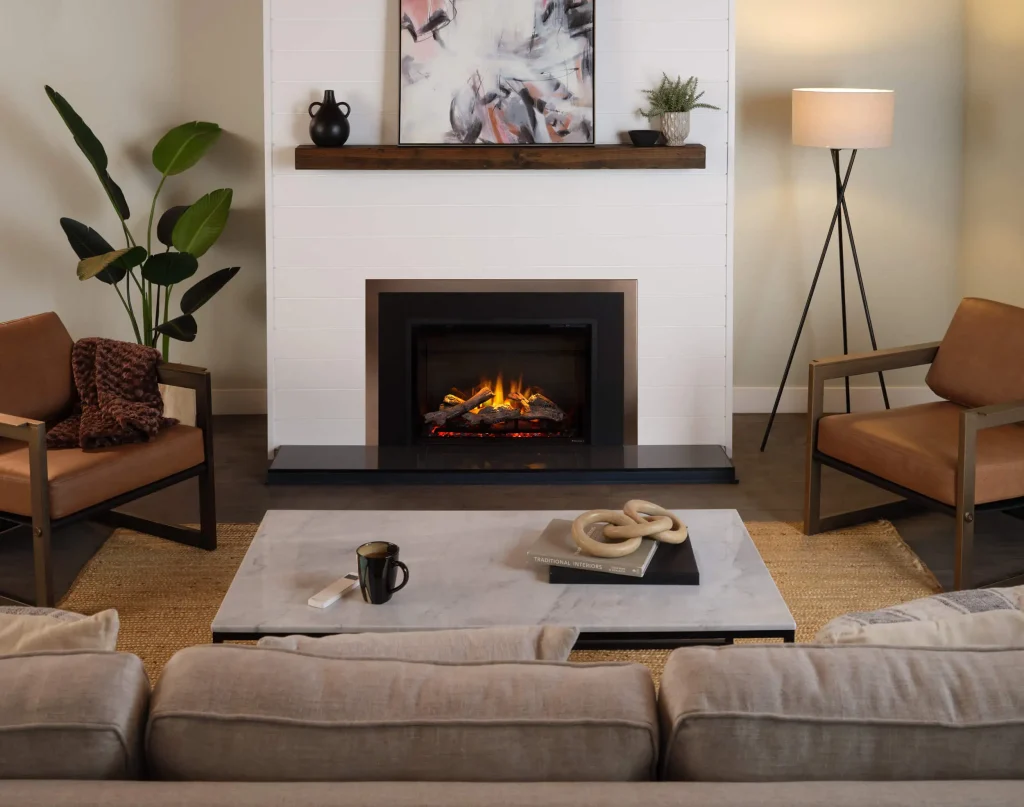

Ei29 Electric Insert
$2,145.00
- Flame Viewing Area: 29″ W x 19″ H
- Unit includes: Thermostatic Remote Control. Can be used with or without heat.
- 3 sided (31-1/16″W x 20-7/8″H) & 4 sided (31-1/16″W x 21-13/16″H) finishing trim (bottom trim is removed to create a 3 sided). Oak Log set with grate & ember bed media.
- 5,000 BTU, 1400W, 120V plug or hardwire or 9,500 BTU, 2800W, 240V hardwire only
Specifications
| FACEPLATE | A – WIDTH | B – HEIGHT | C – DEPTH | D – BOTTOM HEIGHT |
|---|---|---|---|---|
| 3-Sided Finishing Trim* | 31-1/16″ | 20-7/8″ | 1/8″ | — |
| 4-Sided Finishing Trim** | 31-1/16″ | 21-13/16″ | 1/8″ | 13/16″ |
| 3-Sided Flush Faceplate | 40-3/16″ | 26″ | 1/16″ | — |
| 4-Sided Flush Faceplate | 40-3/16″ | 29-1/2″ | 1/16″ | 4-3/4″ |
| Oversized Backing Plate | 47-1/2″ | 31-1/2″ | 1/16″ | — |
* Bottom trim from the 4-sided finishing trim is removed to create a 3-sided.
** Included with appliance.
Min. Fireplace Opening
| A – HEIGHT | B – DEPTH | C – WIDTH (REAR) | D – WIDTH (FRONT) |
|---|---|---|---|
| 20-1/8″ | 9-3/4″ | 23-5/16″ | 28-7/16″ |
*** Using a Flush Faceplate & Traditional Surround.
NOTE: Minimum fireplace opening sizes will vary depending on the faceplate option used.
