• Flame Viewing Area: 29″ W x 19″ H
• Unit includes: Thermostatic Remote Control. Can be used with or without heat.
• 3 sided (31-1/16″W x 20-7/8″H) & 4 sided (31-1/16″W x 21-13/16″H) finishing trim (bottom trim is removed to create a 3 sided). Oak Log set with grate & ember bed media.
• 5,000 BTU, 1400W, 120V plug or hardwire or 9,500 BTU, 2800W, 240V hardwire only

Specifications

FACEPLATE	A – WIDTH	B – HEIGHT	C – DEPTH	D – BOTTOM HEIGHT
3-Sided Finishing Trim*	31-1/16″	20-7/8″	1/8″	—
4-Sided Finishing Trim**	31-1/16″	21-13/16″	1/8″	13/16″
3-Sided Flush Faceplate	40-3/16″	26″	1/16″	—
4-Sided Flush Faceplate	40-3/16″	29-1/2″	1/16″	4-3/4″
Oversized Backing Plate	47-1/2″	31-1/2″	1/16″	—

* Bottom trim from the 4-sided finishing trim is removed to create a 3-sided.
** Included with appliance.

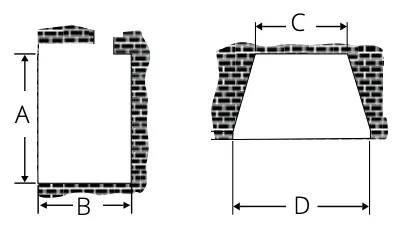

Min. Fireplace Opening

A – HEIGHT	B – DEPTH	C – WIDTH (REAR)	D – WIDTH (FRONT)
20-1/8″	9-3/4″	23-5/16″	28-7/16″

*** Using a Flush Faceplate & Traditional Surround.
NOTE: Minimum fireplace opening sizes will vary depending on the faceplate option used.

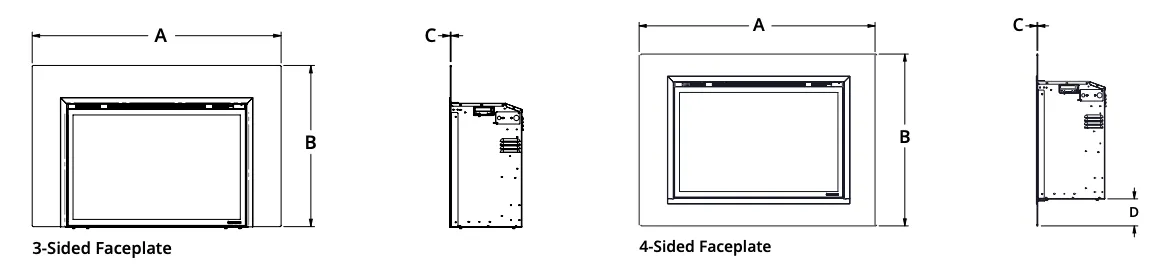

Dimensions
